一.产品特征简介Product Features

1

产品名称Product name

无刷直流水泵DC50K

Brush-less dc pump DC50K

2

型号Model No

DC50K

3

重量Weight

0.48kg

4

寿命Life span

30000h(连续continuous)

5

防护等级Waterproof Grade

IP68

6

颜色Color

黑色Black

7

认证Certificate

CE,ROSH

8

壳体材料Material of pump

PA66+30%GF

9

噪音Noise class

35dB

10

工作压力Bearing pressure

1MPa

11

绝缘等级Insulation grade

H Grade180°

12

工作原理Working principle

离心泵Centrifugal pump

13

用途Application

电动汽车散热系统,循环散热系统

ECO Car cooling system, Cooling circulation system



二.用范围Range of application

1

使用液体类型:

Liquid Type

油性介质,水,酸碱盐以及其他流动性液体

Water, oil, or normal acid/ alkaline and other liquids(need to test)

2

使用液体温度:

Liquid Temperature

-30°—100°三相板内置非潜水/三相板外置潜水

-30°—10(controller inside for non-submersible/controller outside for submersible)

3

调速方式:

Power regulation function

PWM调速:幅值5V 50-800HZ  可定制

Speed adjustable by PWM5V,50~800HZ) can be customized

0-5V调速, 电位器(4.7k~20K0~5V analogical signal or potentiometer4.7k~20K

4

使用电源类型:

Power

直流电源,太阳能板蓄电池

PSU,Solar panel,Battery


三.基本参数(参数可以定制)ParameterParameter can be customized

1

产品型号:

Product model

DC50K-12120S

DC50K-12120A

DC50K-24160S

DC50K-24160A


2

额定电压:

Rated Voltage

12V DC

24V DC


3

工作电压范围:

Working voltage range

10-18V

10-28V

此范围内,水泵能够正常工作

The pump can out put constant power when the voltage is higher than rated voltage.

4

额定电流:

Rated Current

2.7A(4.5A)±10%

2.7A(3.6A)±10%

封闭出水口电流(敞口抽水电流)

Closed outlet current(open outlet current)

5

输入功率:

Input Power

32W(54W)±10%

64W(84W)±10%

封闭出水口功率(敞口抽水功率)

Closed outlet power(open outlet power)

6

最大流量:

Max. Flow rate

1260L/H ±10%

1380L/H ±10%

敞口流量

Open outlet flow

7

最大扬程:

Max. Head

12M ±7%

16M ±7%

静态扬程

Static lift

8

推荐输入电源:

Min. power supply

12V-5A

24V-4A


9

恒功率输出:

Constant

power output

例如12V(24V)10W的水泵,用12-18V(24-30V) 10W,并且可以长期运转。

For example, a 12V (24V) 10w pump with 12-18V (24-30V)

is 10w and suitable for a long time working under this condition

四.附加功能说明Additional function instructions

1

卡死保护

Jam protection

卡死的时候水泵停止工作

When jam it will Stop to protect itself

2

缺水/空转保护

Dry run protection

水泵缺水或者空转时水泵会循环的停转(4秒)运转(2秒),可定制保护策略

The pump will Stop(8S) and start(2s) repeatedly to protect itself(can be customized)

3

过压保护

Overloading protection

当电压不稳定或者其他原因导致超过水泵额定功率,水泵停止运行

When the voltage exceeds the rated power, the pump will stop

4

电源反接

Reverse protection

电源正负极接反,水泵停止运行,重新接后,正常工作

Wrong connection of the power supply(positive and negative), the water pump will stop running, and then re-connected, can work normally.

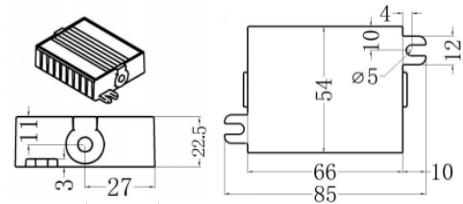

.控制板位置说明

1



水泵驱动器外置

Controller Internal install

图片关键词

适合潜水或陆用场合

Suitable for submersible install or external installation

2



水泵驱动器内置

Controller Internal install

图片关键词

适合外置陆用场合

Suitable for external installation

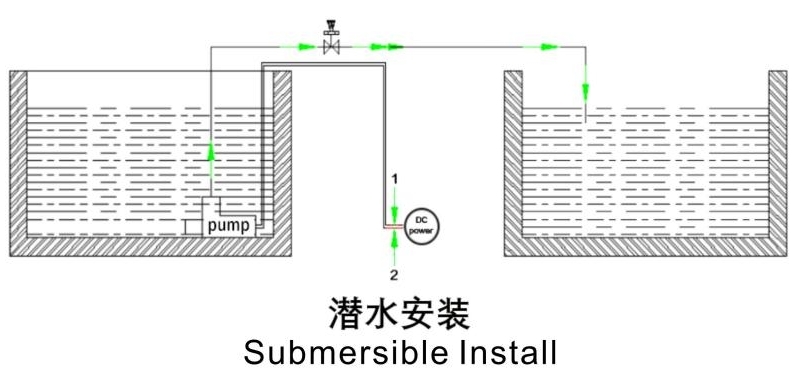

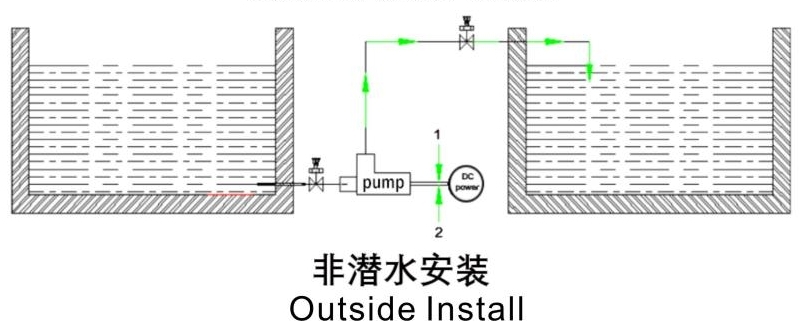

.参数测试安装示意图Installation Drawing



图片关键词

图片关键词


注意:本产品不具备自吸功能,因此在安装时,需要保证压盖型腔内具有足够的水,即安装时需要保证水泵中心位置低于水箱内液面,以保证水泵能够正常运行!

Notice: The pump is not self-priming pump. When install, please make sure there is enough water in pump gland. Meanwhile, the pump must be installed below the liquid level in the tank.

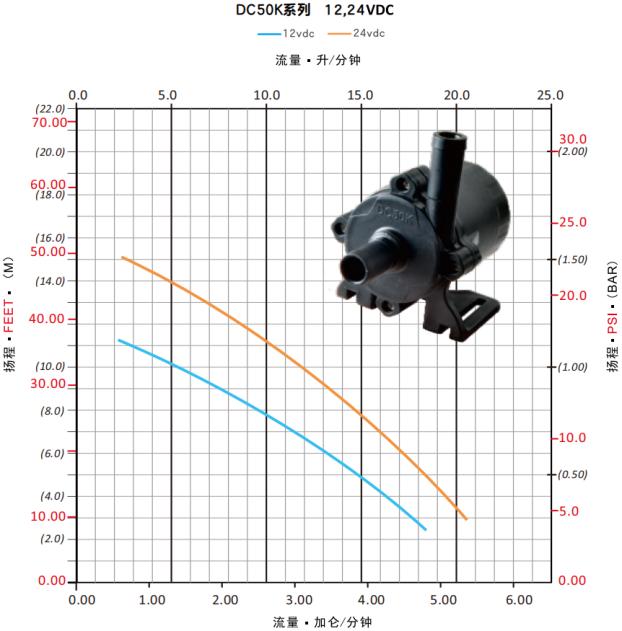

.扬程-流量曲线图Flow -Head Chart

图片关键词

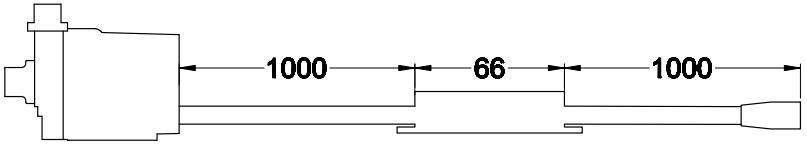

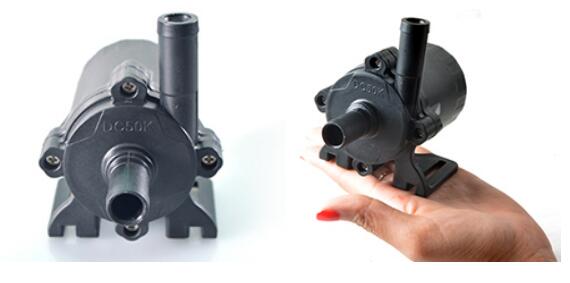

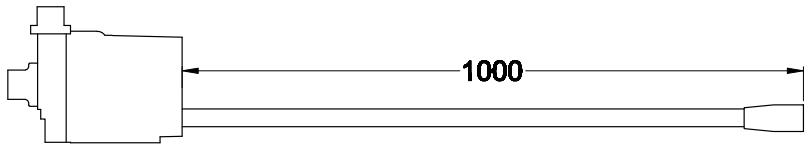

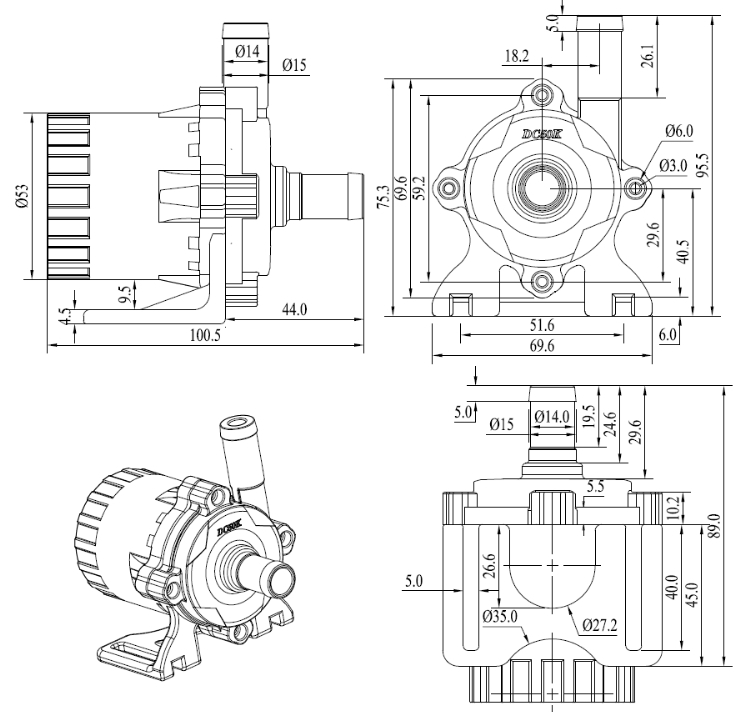

.尺寸与外观图Dimension and appearance

图片关键词

图片关键词

图片关键词


九.故障与维修Failure and maintenance



故障现象

Failure phenomenon

原因

Cause

解决方案

Solution

1

电流大,流量小

High current, low flow

转子内有杂质

Impurities in the rotor

拆开水泵清洗转子

Disassemble the pump to clean the rotor



2

电流变小,抽水断续

Current becomes low, pumping intermittent

缺水

What shortage

加水

Add water









3

不转,电流时大时小

No rotation, current is high and low

转子因异物卡死

Rotor jammed by a foreign object

排除转子卡死异物

Remove foreign matter from rotor

不转,出现短路电流

No rotation, short-circuit current

控制板损坏

Damaged control board

更换水

Change a new pump

不转无电流

No current without rotation

电源线没有接好

The power cord is not connected.

检查连接件或插头是否正常

Check if connected







4







噪音大

Noisy

内有杂质

Impurities in the pump

排除杂质

Remove impurities

内有气体无法排出

air in the pump cannot be discharged

将出水口朝上放置,使液体中没有空气

Place the outlet facing up so that there is no air in the liquid

内无液体,水干磨

No liquid in the pump, pump dry running

使内有液体即可

have enough liquid in the pump



十.注意事项Notice

1.使用带有大于0.35mm的杂质和陶磁性颗粒的液体。                                 It is forbidden to use liquids with impurities greater than 0.35mm and ceramic or magnetic particles.

2.长时间不使用时,通电前最好先使用泵内有一定的液体。                                If it is not used for long time,make sure water goes inside the pump before power on.

3.通电前请先确认连接无误,否则可能产生故障。                                        If not used for long time, please make sure cord connection correctly.

4.严禁泵内无液体时长时间使用。                                                    Do not let pump dry run .

5.低温环境使用时,请确保使用液体不会出现结冰或者变得很粘稠。                        If use in low temperature environment, please make sure the water won’t be frozen or thick..

6.连接器的针脚处有水渍,请将水渍处理干净后再使用。                              Please check if there is water on connection plug, and clean it before us
